Case study: PMM

Maximal structure:

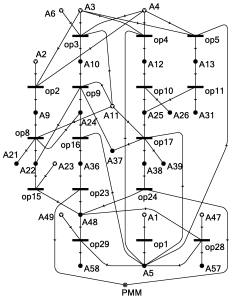

Maximal structure of PMM production

The model for P-Graph Studio is available here.

The model requires P-Graph Studio to be installed on the computer.

Instructions:

  1. Extract the model from the zip file
  2. Open the file with P-Graph Studio
  3. Select algorithm ABB
  4. Solve the problem to see 24 operations modes

Font size can be increased under Preferences > Graph settings.
